Inheritance diagram for pointStructure:

Collaboration diagram for pointStructure:

[legend]

Classes
class	activePointsDevice

class	activePointsHost

Public Types
enum	PointFlag : int8 { DELETED = -1, ACTIVE = 1 }

Public Member Functions
	TypeInfo ("pointStructure")

	pointStructure ()

	pointStructure (const int8Vector &flgVec, const realx3Vector &posVec)

	pointStructure (const realx3Vector &posVec)

	pointStructure (const pointStructure &)=default

	pointStructure (pointStructure &&)=delete

pointStructure &	operator= (const pointStructure &)=default

pointStructure &	operator= (pointStructure &&)=delete

virtual	~pointStructure ()=default

activePointsDevice	activePointsMaskD () const

activePointsHost	activePointsMaskH () const

const FUNCTION_H realx3Field_D &	pointPosition () const

const FUNCTION_H int8Field_HD &	pointFlag () const

INLINE_FUNCTION_H auto	pointPositionHostAll ()

FUNCTION_H label	size () const

FUNCTION_H label	capacity () const

FUNCTION_H label	numActive () const

FUNCTION_H bool	allActive () const

INLINE_FUNCTION_H range	activeRange () const

INLINE_FUNCTION_H bool	isActive (label i) const

FUNCTION_H size_t	markDeleteOutOfBox (const box &domain)

virtual FUNCTION_H bool	updateForDelete ()

FUNCTION_H auto	insertedPointIndex () const

FUNCTION_H auto	insertedPointIndexH () const

FUNCTION_H auto	insertedPointIndexD () const

virtual FUNCTION_H uniquePtr< int32IndexContainer >	insertPoints (const realx3Vector &pos, const setFieldList &setField, repository &owner, const List< eventObserver * > &exclusionList={nullptr})

FUNCTION_H bool	readPointStructure (iIstream &is)

FUNCTION_H bool	writePointStructure (iOstream &os) const

FUNCTION_H bool	read (iIstream &is)

FUNCTION_H bool	write (iOstream &os) const

Public Member Functions inherited from eventSubscriber
	eventSubscriber ()

virtual	~eventSubscriber ()

virtual bool	subscribe (eventObserver *observer) const

virtual bool	unsubscribe (eventObserver *observer) const

bool	notify (const eventMessage &msg)

bool	notify (const eventMessage &msg, const List< eventObserver * > &exclutionList)

Static Public Attributes
static const size_t	maxSizeDefault_ = 10000

Protected Member Functions
FUNCTION_H bool	evaluatePointStructure ()

FUNCTION_H void	setNumMaxPoints ()

FUNCTION_H realx3Field_D &	pointPosition ()

FUNCTION_H int8Field_HD &	pointFlag ()

FUNCTION_H uniquePtr< int32IndexContainer >	getNewPointsIndices (int32 numNewPoints) const

Protected Attributes
size_t	numPoints_ = 0

size_t	maxPoints_ = maxSizeDefault_

int8Field_HD	pointFlag_

realx3Field_D	pointPosition_

size_t	numActivePoints_ = 0

range	activeRange_

int32IndexContainer	tobeInsertedIndex_

Protected Attributes inherited from eventSubscriber
List< eventObserver * >	observerList_

Friends
class	dynamicPointStructure

Detailed Description

Definition at line 44 of file pointStructure.hpp.

Member Enumeration Documentation

◆ PointFlag

enum PointFlag : int8

Enumerator
DELETED
ACTIVE

Definition at line 50 of file pointStructure.hpp.

Constructor & Destructor Documentation

◆ pointStructure() [1/5]

pointStructure ( )

Definition at line 142 of file pointStructure.cpp.

◆ pointStructure() [2/5]

pointStructure	(	const int8Vector &	flgVec,
		const realx3Vector &	posVec
	)

Definition at line 151 of file pointStructure.cpp.

References fatalExit.

◆ pointStructure() [3/5]

pointStructure ( const realx3Vector & posVec )

Definition at line 174 of file pointStructure.cpp.

References pointStructure::ACTIVE, and fatalExit.

◆ pointStructure() [4/5]

pointStructure ( const pointStructure & )

default

◆ pointStructure() [5/5]

pointStructure ( pointStructure && )

delete

◆ ~pointStructure()

virtual ~pointStructure ( )

virtualdefault

Member Function Documentation

◆ evaluatePointStructure()

FUNCTION_H bool evaluatePointStructure ( )

protected

Definition at line 30 of file pointStructure.cpp.

References pointStructure::ACTIVE, pointStructure::activeRange_, VectorDual< T, MemorySpace >::deviceVectorAll(), fatalErrorInFunction, pFlow::maxActive(), pointStructure::numActivePoints_, pointStructure::numPoints_, pointStructure::pointFlag_, pointStructure::pointPosition_, pFlow::pointStructureKernels::scanPointFlag(), pointStructure::setNumMaxPoints(), VectorSingle< T, MemorySpace >::size(), and VectorDual< T, MemorySpace >::size().

Here is the call graph for this function:

◆ setNumMaxPoints()

FUNCTION_H void setNumMaxPoints ( )

protected

Definition at line 57 of file pointStructure.cpp.

Referenced by pointStructure::evaluatePointStructure().

Here is the caller graph for this function:

◆ pointPosition() [1/2]

const FUNCTION_H pFlow::realx3Field_D & pointPosition ( )

protected

Definition at line 64 of file pointStructure.cpp.

Referenced by pFlow::PFtoVTK::convertTimeFolderPointFields(), pFlow::PFtoVTK::convertTimeFolderPointFieldsSelected(), selectBox::selectAllPointsInBox(), and dynamicPointStructure::update().

Here is the caller graph for this function:

◆ pointFlag() [1/2]

const FUNCTION_H pFlow::int8Field_HD & pointFlag ( )

protected

Definition at line 70 of file pointStructure.cpp.

Referenced by pointField< T >::pointFlag().

Here is the caller graph for this function:

◆ getNewPointsIndices()

pFlow::uniquePtr< pFlow::int32IndexContainer > getNewPointsIndices ( int32 numNewPoints ) const

protected

Definition at line 76 of file pointStructure.cpp.

References Vector< T, Allocator >::clear(), fatalErrorInFunction, and ForAll.

Here is the call graph for this function:

◆ TypeInfo()

TypeInfo ( "pointStructure" )

◆ operator=() [1/2]

pointStructure& operator= ( const pointStructure & )

default

◆ operator=() [2/2]

pointStructure& operator= ( pointStructure && )

delete

◆ activePointsMaskD()

activePointsDevice activePointsMaskD ( ) const

inline

Definition at line 232 of file pointStructure.hpp.

References pointStructure::activeRange(), pointStructure::allActive(), and VectorDual< T, MemorySpace >::deviceVectorAll().

Here is the call graph for this function:

◆ activePointsMaskH()

activePointsHost activePointsMaskH ( ) const

inline

Definition at line 241 of file pointStructure.hpp.

References pointStructure::activeRange(), pointStructure::allActive(), and VectorDual< T, MemorySpace >::hostVectorAll().

Referenced by pointRectCell::mapPOints().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ pointPosition() [2/2]

const FUNCTION_H realx3Field_D& pointPosition ( ) const

◆ pointFlag() [2/2]

const FUNCTION_H int8Field_HD& pointFlag ( ) const

◆ pointPositionHostAll()

INLINE_FUNCTION_H auto pointPositionHostAll ( )

inline

Definition at line 259 of file pointStructure.hpp.

References VectorSingle< T, MemorySpace >::hostVectorAll(), and pointStructure::pointPosition_.

Referenced by dynamicPointStructure::pointPositionHostAll().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ size()

FUNCTION_H pFlow::label size ( ) const

Definition at line 210 of file pointStructure.cpp.

◆ capacity()

FUNCTION_H pFlow::label capacity ( ) const

Definition at line 216 of file pointStructure.cpp.

◆ numActive()

FUNCTION_H pFlow::label numActive ( ) const

Definition at line 222 of file pointStructure.cpp.

◆ allActive()

FUNCTION_H bool allActive ( ) const

Definition at line 228 of file pointStructure.cpp.

Referenced by pointStructure::activePointsMaskD(), pointStructure::activePointsMaskH(), and pointField< T >::allActive().

Here is the caller graph for this function:

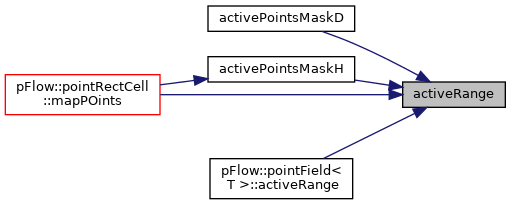

◆ activeRange()

INLINE_FUNCTION_H range activeRange ( ) const

inline

Definition at line 281 of file pointStructure.hpp.

References pointStructure::activeRange_.

Referenced by pointStructure::activePointsMaskD(), pointStructure::activePointsMaskH(), pointField< T >::activeRange(), and pointRectCell::mapPOints().

Here is the caller graph for this function:

◆ isActive()

INLINE_FUNCTION_H bool isActive ( label i ) const

inline

Definition at line 287 of file pointStructure.hpp.

References pointStructure::ACTIVE, and pointStructure::pointFlag_.

Referenced by pointField< T >::isActive().

Here is the caller graph for this function:

◆ markDeleteOutOfBox()

FUNCTION_H size_t markDeleteOutOfBox ( const box & domain )

Definition at line 235 of file pointStructure.cpp.

References pointStructure::DELETED, fatalErrorInFunction, fatalExit, pFlow::pointStructureKernels::markDeleteOutOfBox(), and eventMessage::RANGE_CHANGED.

Referenced by dynamicPointStructure::markDeleteOutOfBox().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ updateForDelete()

FUNCTION_H bool updateForDelete ( )

virtual

Definition at line 291 of file pointStructure.cpp.

References notImplementedFunction.

◆ insertedPointIndex()

FUNCTION_H auto insertedPointIndex ( ) const

inline

Definition at line 305 of file pointStructure.hpp.

References pointStructure::tobeInsertedIndex_.

Referenced by dynamicPointStructure::update().

Here is the caller graph for this function:

◆ insertedPointIndexH()

FUNCTION_H auto insertedPointIndexH ( ) const

inline

Definition at line 311 of file pointStructure.hpp.

References indexContainer< IndexType >::hostView(), and pointStructure::tobeInsertedIndex_.

Here is the call graph for this function:

◆ insertedPointIndexD()

FUNCTION_H auto insertedPointIndexD ( ) const

inline

Definition at line 317 of file pointStructure.hpp.

References indexContainer< IndexType >::deviceView(), and pointStructure::tobeInsertedIndex_.

Here is the call graph for this function:

◆ insertPoints()

FUNCTION_H pFlow::uniquePtr< pFlow::int32IndexContainer > insertPoints	(	const realx3Vector &	pos,
		const setFieldList &	setField,
		repository &	owner,
		const List< eventObserver * > &	exclusionList = `{nullptr}`
	)
