vtkFile Class Reference

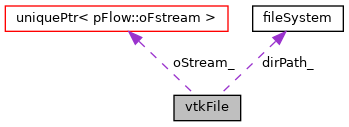

Collaboration diagram for vtkFile:

Public Member Functions
	vtkFile (const fileSystem dir, const word &bName, real time)
virtual	~vtkFile ()=default
oFstream &	operator() ()
	operator bool () const
bool	operator! () const
virtual fileSystem	fileName () const

Protected Member Functions
bool	openStream ()
virtual bool	writeHeader ()

Protected Attributes
fileSystem	dirPath_
word	baseName_
real	time_ = 0.0
uniquePtr< oFstream >	oStream_ = nullptr

Detailed Description

Definition at line 33 of file vtkFile.hpp.

Constructor & Destructor Documentation

vtkFile()

vtkFile	(	const fileSystem	dir,
		const word &	bName,
		real	time
	)

Definition at line 49 of file vtkFile.cpp.

References pFlow::endl(), fatalErrorInFunction, and fatalExit.

Here is the call graph for this function:

~vtkFile()

virtual ~vtkFile ( )

virtualdefault

Member Function Documentation

openStream()

bool openStream ( )

protected

Definition at line 24 of file vtkFile.cpp.

References vtkFile::fileName(), vtkFile::oStream_, and vtkFile::writeHeader().

Referenced by vtkFile::operator()().

Here is the call graph for this function:

Here is the caller graph for this function:

writeHeader()

virtual bool writeHeader ( )

protectedvirtual

Referenced by vtkFile::openStream().

Here is the caller graph for this function:

operator()()

oFstream& operator() ( )

inline

Definition at line 55 of file vtkFile.hpp.

References pFlow::endl(), fatalErrorInFunction, fatalExit, vtkFile::fileName(), vtkFile::openStream(), and vtkFile::oStream_.

Here is the call graph for this function:

operator bool()

operator bool ( ) const

inlineexplicit

Definition at line 69 of file vtkFile.hpp.

References vtkFile::oStream_.

operator!()

bool operator! ( ) const

inline

Definition at line 76 of file vtkFile.hpp.

References vtkFile::oStream_.

fileName()

pFlow::fileSystem fileName ( ) const

virtual

Definition at line 70 of file vtkFile.cpp.

References pFlow::int322Word().

Referenced by pFlow::TSFtoVTK::convertTimeFolderTriSurfaceFields(), vtkFile::openStream(), and vtkFile::operator()().

Here is the call graph for this function:

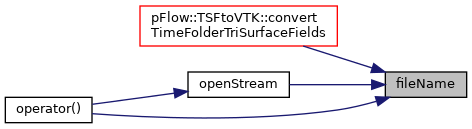

Here is the caller graph for this function:

Member Data Documentation

dirPath_

fileSystem dirPath_

protected

Definition at line 37 of file vtkFile.hpp.

baseName_

word baseName_

protected

Definition at line 39 of file vtkFile.hpp.

time_

real time_ = 0.0

protected

Definition at line 41 of file vtkFile.hpp.

oStream_

uniquePtr<oFstream> oStream_ = nullptr

protected

Definition at line 43 of file vtkFile.hpp.

Referenced by vtkFile::openStream(), vtkFile::operator bool(), vtkFile::operator!(), and vtkFile::operator()().

---

The documentation for this class was generated from the following files:

• utilities/Utilities/vtkFile/vtkFile.hpp
• utilities/Utilities/vtkFile/vtkFile.cpp
