Base class for geometry for managing tri-surfaces, geometry motion, and surface physical properties. More...

Inheritance diagram for geometry:

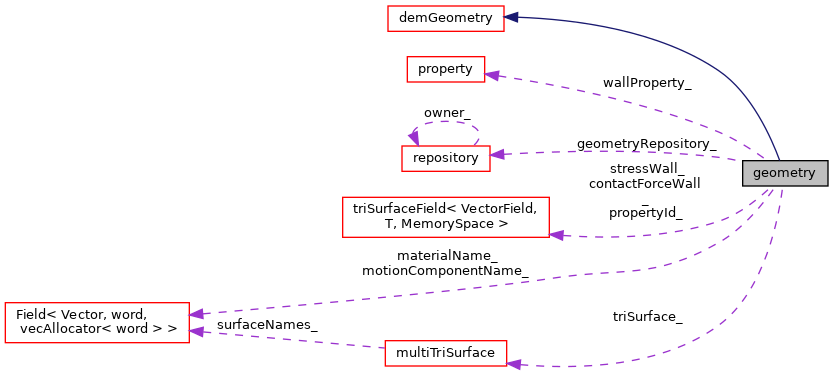

Collaboration diagram for geometry:

Public Member Functions
	TypeInfo ("geometry")
	Type info. More...

	geometry (systemControl &control, const property &prop)
	Construct from controlSystem and property, for reading from file. More...

	geometry (systemControl &control, const property &prop, const multiTriSurface &triSurface, const wordVector &motionCompName, const wordVector &propName)
	Construct from components. More...

	geometry (systemControl &control, const property &prop, const dictionary &dict, const multiTriSurface &triSurface, const wordVector &motionCompName, const wordVector &propName)
	Construct from components and dictionary that contains motionModel. More...

virtual	~geometry ()=default
	Destructor. More...

	create_vCtor (geometry, systemControl,(systemControl &control, const property &prop),(control, prop))
	Virtual constructor. More...

	create_vCtor (geometry, dictionary,(systemControl &control, const property &prop, const dictionary &dict, const multiTriSurface &triSurface, const wordVector &motionCompName, const wordVector &propName),(control, prop, dict, triSurface, motionCompName, propName))
	Virtual constructor. More...

auto	size () const
	Size of tri-surface. More...

auto	numPoints () const
	Number of points in the set of surface walls. More...

auto	numTriangles () const
	Number of triangles in the set of surface walls. More...

const auto &	points () const
	Access to the points. More...

const auto &	vertices () const
	Access to the vertices. More...

auto	getTriangleAccessor () const
	Obtain an object for accessing triangles. More...

auto &	surface ()
	Surface. More...

const auto &	surface () const
	Surface. More...

realx3TriSurfaceField_D &	contactForceWall ()
	Access to contact force. More...

const realx3TriSurfaceField_D &	contactForceWall () const
	Access to contact force. More...

const auto &	wallProperty () const
	Access to property. More...

const repository &	owner () const
	Owner repository. More...

repository &	owner ()
	Owner repository. More...

auto	path ()
	Path to the repository folder. More...

virtual word	motionModelTypeName () const =0
	The name of motion model. More...

virtual const int8Vector_HD &	triMotionIndex () const =0
	Motion model index of triangles. More...

virtual const int8Vector_HD &	pointMotionIndex () const =0
	Motion model index of points. More...

const int8TriSurfaceField_D &	propertyId () const
	Property ide of triangles. More...

bool	beforeIteration () override
	Operations before each iteration. More...

bool	afterIteration () override
	Operations after each iteration. More...

bool	write () const
	write More...

Public Member Functions inherited from demGeometry
	demGeometry (systemControl &control)

Public Member Functions inherited from demComponent
	TypeInfo ("demComponent")

	demComponent (const word &name, systemControl &control)

virtual	~demComponent ()=default

const auto &	control () const

auto &	control ()

real	dt () const

real	currentTime () const

auto &	timers ()

const auto &	timers () const

virtual bool	iterate ()=0

Static Public Member Functions
static uniquePtr< geometry >	create (systemControl &control, const property &prop)

static uniquePtr< geometry >	create (systemControl &control, const property &prop, const dictionary &dict, const multiTriSurface &triSurface, const wordVector &motionCompName, const wordVector &propName)

Protected Member Functions
bool	findPropertyId ()
	Find property id of each triangle based on the supplied material name and the surface wall that the triangle belongs to. More...

void	zeroForce ()
	Initialize contact force to zero. More...

Protected Attributes
const property &	wallProperty_
	Const reference to physical property of materials. More...

repository &	geometryRepository_
	Repository to store geometry data at each simulation moment. More...

multiTriSurface &	triSurface_
	All triangles in the set of wall surfaces. More...

wordField &	motionComponentName_
	The name of motion component of each wall surface. More...

wordField &	materialName_
	Material name of each wall surface More...

int8TriSurfaceField_D &	propertyId_
	Property id of each triangle in the set of wall surfaces. More...

realx3TriSurfaceField_D &	contactForceWall_
	Contact force on each triangle in the set of wall surfaces. More...

realx3TriSurfaceField_D &	stressWall_
	Stress on ech triangle in the set of wall surfaces. More...

Protected Attributes inherited from demComponent
word	componentName_

systemControl &	control_

Timers	timers_

Detailed Description

Base class for geometry for managing tri-surfaces, geometry motion, and surface physical properties.

Definition at line 43 of file geometry.hpp.

Constructor & Destructor Documentation

◆ geometry() [1/3]

geometry	(	systemControl &	control,
		const property &	prop
	)

Construct from controlSystem and property, for reading from file.

Definition at line 57 of file geometry.cpp.

References fatalExit.

◆ geometry() [2/3]

geometry	(	systemControl &	control,
		const property &	prop,
		const multiTriSurface &	triSurface,
		const wordVector &	motionCompName,
		const wordVector &	propName
	)

Construct from components.

Definition at line 133 of file geometry.cpp.

References fatalExit.

◆ geometry() [3/3]

geometry	(	systemControl &	control,
		const property &	prop,
		const dictionary &	dict,
		const multiTriSurface &	triSurface,
		const wordVector &	motionCompName,
		const wordVector &	propName
	)

Construct from components and dictionary that contains motionModel.

Definition at line 214 of file geometry.cpp.

◆ ~geometry()

virtual ~geometry ( )

virtualdefault

Destructor.

Member Function Documentation

◆ findPropertyId()

bool findPropertyId ( )

protected

Find property id of each triangle based on the supplied material name and the surface wall that the triangle belongs to.

Definition at line 25 of file geometry.cpp.

References Vector< T, Allocator >::clear(), pFlow::endl(), fatalErrorInFunction, ForAll, geometry::materialName_, property::nameToIndex(), geometry::propertyId_, geometry::surface(), and geometry::wallProperty_.

Here is the call graph for this function:

◆ zeroForce()

void zeroForce ( )

inlineprotected

Initialize contact force to zero.

Definition at line 82 of file geometry.hpp.

References geometry::contactForceWall_, and pFlow::zero3.

◆ TypeInfo()

TypeInfo ( "geometry" )

Type info.

◆ create_vCtor() [1/2]

create_vCtor	(	geometry	,
		systemControl	,
		(systemControl &control, const property &prop)	,
		(control, prop)
	)

Virtual constructor.

◆ create_vCtor() [2/2]

create_vCtor	(	geometry	,
		dictionary	,
		(systemControl &control, const property &prop, const dictionary &dict, const multiTriSurface &triSurface, const wordVector &motionCompName, const wordVector &propName)	,
		(control, prop, dict, triSurface, motionCompName, propName)
	)

Virtual constructor.

◆ size()

auto size ( ) const

inline

Size of tri-surface.

Definition at line 148 of file geometry.hpp.

References triSurface::size(), and geometry::triSurface_.

Referenced by geometry::numTriangles().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ numPoints()

auto numPoints ( ) const

inline

Number of points in the set of surface walls.

Definition at line 155 of file geometry.hpp.

References triSurface::numPoints(), and geometry::triSurface_.

Here is the call graph for this function:

◆ numTriangles()

auto numTriangles ( ) const

inline

Number of triangles in the set of surface walls.

Definition at line 162 of file geometry.hpp.

References geometry::size().

Here is the call graph for this function:

◆ points()

const auto& points ( ) const

inline

Access to the points.

Definition at line 169 of file geometry.hpp.

References triSurface::points(), and geometry::triSurface_.

Here is the call graph for this function:

◆ vertices()

const auto& vertices ( ) const

inline

Access to the vertices.

Definition at line 176 of file geometry.hpp.

References geometry::triSurface_, and triSurface::vertices().

Here is the call graph for this function:

◆ getTriangleAccessor()

auto getTriangleAccessor ( ) const

inline

Obtain an object for accessing triangles.

Definition at line 182 of file geometry.hpp.

References triSurface::getTriangleAccessor(), and geometry::triSurface_.

Here is the call graph for this function:

◆ surface() [1/2]

auto& surface ( )

inline

Surface.

Definition at line 188 of file geometry.hpp.

References geometry::triSurface_.

Referenced by geometry::findPropertyId(), and interactionBase::surface().

Here is the caller graph for this function:

◆ surface() [2/2]

const auto& surface ( ) const

inline

Surface.

Definition at line 194 of file geometry.hpp.

References geometry::triSurface_.

◆ contactForceWall() [1/2]

realx3TriSurfaceField_D& contactForceWall ( )

inline

Access to contact force.

Definition at line 201 of file geometry.hpp.

References geometry::contactForceWall_.

◆ contactForceWall() [2/2]

const realx3TriSurfaceField_D& contactForceWall ( ) const

inline

Access to contact force.

Definition at line 208 of file geometry.hpp.

References geometry::contactForceWall_.

◆ wallProperty()

const auto& wallProperty ( ) const

inline

Access to property.

Definition at line 214 of file geometry.hpp.

References geometry::wallProperty_.

◆ owner() [1/2]

const repository& owner ( ) const

inline

Owner repository.

Definition at line 221 of file geometry.hpp.

References geometry::geometryRepository_.

Referenced by geometry::path(), and geometry::write().

Here is the caller graph for this function:

◆ owner() [2/2]

repository& owner ( )

inline

Owner repository.

Definition at line 228 of file geometry.hpp.

References geometry::geometryRepository_.

◆ path()

auto path ( )

inline

Path to the repository folder.

Definition at line 234 of file geometry.hpp.

References geometry::owner(), and repository::path().

Here is the call graph for this function:

◆ motionModelTypeName()

virtual word motionModelTypeName ( ) const

pure virtual

The name of motion model.

Implemented in geometryMotion< MotionModelType >.

Referenced by interaction::create().

Here is the caller graph for this function:

◆ triMotionIndex()

virtual const int8Vector_HD& triMotionIndex ( ) const

pure virtual

Motion model index of triangles.

Implemented in geometryMotion< MotionModelType >.

◆ pointMotionIndex()

virtual const int8Vector_HD& pointMotionIndex ( ) const

pure virtual

Motion model index of points.

Implemented in geometryMotion< MotionModelType >.

◆ propertyId()

const int8TriSurfaceField_D& propertyId ( ) const

inline

Property ide of triangles.

Definition at line 252 of file geometry.hpp.

References geometry::propertyId_.

◆ beforeIteration()

bool beforeIteration ( )

overridevirtual

Operations before each iteration.

Implements demComponent.

Reimplemented in geometryMotion< MotionModelType >.

Definition at line 274 of file geometry.cpp.

◆ afterIteration()

bool afterIteration ( )

overridevirtual

Operations after each iteration.

Implements demComponent.

Reimplemented in geometryMotion< MotionModelType >.

Definition at line 281 of file geometry.cpp.

References LAMBDA_HD.

◆ write()

bool write ( ) const

inline

write

Definition at line 266 of file geometry.hpp.

References geometry::owner(), and repository::write().

Here is the call graph for this function:

◆ create() [1/2]

pFlow::uniquePtr< pFlow::geometry > create	(	systemControl &	control,
		const property &	prop
	)

static

Definition at line 229 of file geometry.cpp.

References pFlow::angleBracketsNames(), endREPORT, fatalError, fatalExit, systemControl::geometry(), greenText, pFlow::motionModelFile__, repository::path(), pFlow::printKeys(), objectFile::READ_ALWAYS, REPORT, objectFile::WRITE_NEVER, and yellowText.

Here is the call graph for this function:

◆ create() [2/2]

pFlow::uniquePtr< pFlow::geometry > create	(	systemControl &	control,
		const property &	prop,
		const dictionary &	dict,
		const multiTriSurface &	triSurface,
		const wordVector &	motionCompName,
		const wordVector &	propName
	)

static

Definition at line 302 of file geometry.cpp.

References pFlow::angleBracketsNames(), endREPORT, fatalError, fatalExit, dictionary::getVal(), greenText, pFlow::printKeys(), REPORT, and yellowText.

Here is the call graph for this function:

Member Data Documentation

◆ wallProperty_

const property& wallProperty_

protected

Const reference to physical property of materials.

Definition at line 52 of file geometry.hpp.

Referenced by geometry::findPropertyId(), and geometry::wallProperty().

◆ geometryRepository_

repository& geometryRepository_

protected

Repository to store geometry data at each simulation moment.

Definition at line 55 of file geometry.hpp.

Referenced by geometry::owner().

◆ triSurface_

multiTriSurface& triSurface_

protected

All triangles in the set of wall surfaces.

Definition at line 58 of file geometry.hpp.

Referenced by geometry::getTriangleAccessor(), geometry::numPoints(), geometry::points(), geometry::size(), geometry::surface(), and geometry::vertices().

◆ motionComponentName_

wordField& motionComponentName_

protected

The name of motion component of each wall surface.

Definition at line 61 of file geometry.hpp.

◆ materialName_

wordField& materialName_

protected

Material name of each wall surface

Definition at line 64 of file geometry.hpp.

Referenced by geometry::findPropertyId().

◆ propertyId_

int8TriSurfaceField_D& propertyId_

protected

Property id of each triangle in the set of wall surfaces.

Definition at line 67 of file geometry.hpp.

Referenced by geometry::findPropertyId(), and geometry::propertyId().

◆ contactForceWall_

realx3TriSurfaceField_D& contactForceWall_

protected

Contact force on each triangle in the set of wall surfaces.

Definition at line 70 of file geometry.hpp.

Referenced by geometry::contactForceWall(), and geometry::zeroForce().

◆ stressWall_

realx3TriSurfaceField_D& stressWall_

protected

Stress on ech triangle in the set of wall surfaces.

Definition at line 73 of file geometry.hpp.

The documentation for this class was generated from the following files:

src/Geometry/geometry/geometry.hpp
src/Geometry/geometry/geometry.cpp

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ geometry() [1/3]

◆ geometry() [2/3]

◆ geometry() [3/3]

◆ ~geometry()

Member Function Documentation

◆ findPropertyId()

◆ zeroForce()

◆ TypeInfo()

◆ create_vCtor() [1/2]

◆ create_vCtor() [2/2]

◆ size()

◆ numPoints()

◆ numTriangles()

◆ points()

◆ vertices()

◆ getTriangleAccessor()

◆ surface() [1/2]

◆ surface() [2/2]

◆ contactForceWall() [1/2]

◆ contactForceWall() [2/2]

◆ wallProperty()

◆ owner() [1/2]

◆ owner() [2/2]

◆ path()

◆ motionModelTypeName()

◆ triMotionIndex()

◆ pointMotionIndex()

◆ propertyId()

◆ beforeIteration()

◆ afterIteration()

◆ write()

◆ create() [1/2]

◆ create() [2/2]

Member Data Documentation

◆ wallProperty_

◆ geometryRepository_

◆ triSurface_

◆ motionComponentName_

◆ materialName_

◆ propertyId_

◆ contactForceWall_

◆ stressWall_
