systemControl Class Reference

Inheritance diagram for systemControl:

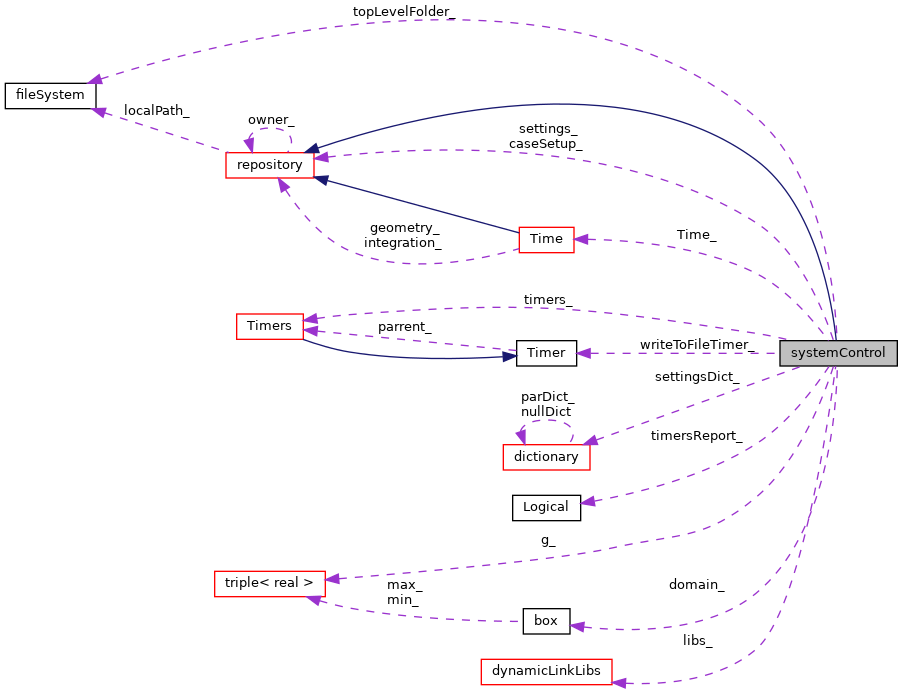

Collaboration diagram for systemControl:

Public Member Functions
	systemControl (const fileSystem path=CWD())
	systemControl (const real startTime, const real endTime, const real saveInterval, const word startTimeName, const fileSystem path=CWD())
const repository &	settings () const
repository &	settings ()
const repository &	caseSetup () const
repository &	caseSetup ()
const Time &	time () const
Time &	time ()
const repository &	geometry () const
repository &	geometry ()
const Timers &	timers () const
Timers &	timers ()
bool	timersReport () const
const dictionary &	settingsDict () const
dictionary &	settingsDict ()
virtual word	runName () const
const realx3 &	g () const
const box &	domain () const
bool	operator++ (int)
void	setSaveTimeFolder (bool saveToFile, const word &timeName="wrongTimeFolder")
size_t	outFilePrecision () const override
Public Member Functions inherited from repository
	TypeInfo ("repository")
	repository (const word &name, const fileSystem &localPath, repository *owner=nullptr)
	repository (const repository &)=delete
repository &	operator= (const repository &)=delete
virtual	~repository ()
word	name () const
virtual fileSystem	localPath () const
virtual fileSystem	path () const
const repository *	owner () const
repository *	owner ()
const repository &	thisRepository () const
repository &	thisRepository ()
bool	addToRepository (repository *rep)
bool	removeRepository (repository *rep)
template<typename T , typename... Args>
T &	emplaceObject (const objectFile &objf, Args &&... args)
template<typename T , typename... Args>
T &	emplaceObjectOrGet (const objectFile &objf, Args &&... args)
template<typename T , typename... Args>
T &	emplaceReplaceObject (const objectFile &objf, Args &&... args)
template<typename T >
T &	insertReplaceObject (uniquePtr< IOobject > &&ptr)
template<typename T >
T &	insertReplaceObject (const objectFile &objf, uniquePtr< IOobject > &&ptr)
bool	eraseObject (const word &name)
bool	lookupObjectName (const word &nm) const
word	lookupObjectTypeName (const word &nm) const
bool	globalLookupObjectName (const word &nm, bool downward=false) const
bool	lookupRepositoryName (const word &nm) const
bool	lookupName (const word nm) const
size_t	numObjects () const
size_t	numRepositories () const
template<typename T >
T &	lookupObject (const word &name)
repository &	lookupRepository (const word &name)
wordList	objectNames () const
wordList	repositoryNames () const
virtual bool	write (bool verbose=false) const
template<typename Type1 >
pFlow::word	reportTypeError (IOobject &object)

Static Protected Member Functions
static word	getRunName (const fileSystem &path)
static word	getTopFolder (const fileSystem &path)

Protected Attributes
const word	runName_
const fileSystem	topLevelFolder_
repository	settings_
repository	caseSetup_
dictionary &	settingsDict_
dynamicLinkLibs	libs_
size_t	outFilePrecision_ = 6
Time	Time_
bool	externalTimeControl_ = false
realx3	g_
box	domain_
Timers	timers_
Logical	timersReport_
Timer	writeToFileTimer_
Protected Attributes inherited from repository
word	name_
fileSystem	localPath_
repository *	owner_
wordMap< IOobject >	objects_
wordMap< repository * >	repositories_

Additional Inherited Members
Protected Member Functions inherited from repository
template<typename Type1 >
word	reportTypeError (IOobject &object)
template<typename Type >
bool	checkForObjectType (IOobject &object)

Detailed Description

Definition at line 41 of file systemControl.hpp.

Constructor & Destructor Documentation

systemControl() [1/2]

systemControl

(

const fileSystem

path = CWD()

)

Definition at line 93 of file systemControl.cpp.

systemControl() [2/2]

systemControl	(	const real	startTime,
		const real	endTime,
		const real	saveInterval,
		const word	startTimeName,
		const fileSystem	path = CWD()
	)

Definition at line 161 of file systemControl.cpp.

Member Function Documentation

getRunName()

pFlow::word getRunName ( const fileSystem &  path )

staticprotected

Definition at line 30 of file systemControl.cpp.

References fileSystem::canonical(), fatalErrorInFunction, fatalExit, and fileSystem::wordPath().

Here is the call graph for this function:

getTopFolder()

pFlow::word getTopFolder ( const fileSystem &  path )

staticprotected

Definition at line 61 of file systemControl.cpp.

References fileSystem::canonical(), fatalErrorInFunction, fatalExit, and fileSystem::wordPath().

Here is the call graph for this function:

settings() [1/2]

const repository& settings ( ) const

inline

Definition at line 106 of file systemControl.hpp.

References systemControl::settings_.

settings() [2/2]

repository& settings ( )

inline

Definition at line 110 of file systemControl.hpp.

References systemControl::settings_.

caseSetup() [1/2]

const repository& caseSetup ( ) const

inline

Definition at line 114 of file systemControl.hpp.

References systemControl::caseSetup_.

Referenced by interaction::create().

Here is the caller graph for this function:

caseSetup() [2/2]

repository& caseSetup ( )

inline

Definition at line 118 of file systemControl.hpp.

References systemControl::caseSetup_.

time() [1/2]

const Time& time ( ) const

inline

Definition at line 123 of file systemControl.hpp.

References systemControl::Time_.

Referenced by pFlow::applySelector(), demComponent::currentTime(), and demComponent::dt().

Here is the caller graph for this function:

time() [2/2]

Time& time ( )

inline

Definition at line 128 of file systemControl.hpp.

References systemControl::Time_.

geometry() [1/2]

const repository& geometry ( ) const

inline

Definition at line 133 of file systemControl.hpp.

References Time::geometry(), and systemControl::Time_.

Referenced by geometry::create().

Here is the call graph for this function:

Here is the caller graph for this function:

geometry() [2/2]

repository& geometry ( )

inline

Definition at line 138 of file systemControl.hpp.

References Time::geometry(), and systemControl::Time_.

Here is the call graph for this function:

timers() [1/2]

const Timers& timers ( ) const

inline

Definition at line 143 of file systemControl.hpp.

References systemControl::timers_.

timers() [2/2]

Timers& timers ( )

inline

Definition at line 148 of file systemControl.hpp.

References systemControl::timers_.

timersReport()

bool timersReport ( ) const

inline

Definition at line 153 of file systemControl.hpp.

References systemControl::timersReport_.

settingsDict() [1/2]

const dictionary& settingsDict ( ) const

inline

Definition at line 158 of file systemControl.hpp.

References systemControl::settingsDict_.

settingsDict() [2/2]

dictionary& settingsDict ( )

inline

Definition at line 162 of file systemControl.hpp.

References systemControl::settingsDict_.

runName()

virtual word runName ( ) const

inlinevirtual

Definition at line 166 of file systemControl.hpp.

References systemControl::runName_.

g()

const realx3& g ( ) const

inline

Definition at line 171 of file systemControl.hpp.

References systemControl::g_.

domain()

const box& domain ( ) const

inline

Definition at line 176 of file systemControl.hpp.

References systemControl::domain_.

operator++()

bool operator++

(

int

)

Definition at line 235 of file systemControl.cpp.

References fatalErrorInFunction, and pFlow::output.

setSaveTimeFolder()

void setSaveTimeFolder ( bool  saveToFile, const word &  timeName = "wrongTimeFolder"  )

inline

Definition at line 183 of file systemControl.hpp.

References timeControl::setSaveTimeFolder(), and systemControl::Time_.

Here is the call graph for this function:

outFilePrecision()

size_t outFilePrecision ( ) const

inlineoverridevirtual

Reimplemented from repository.

Definition at line 190 of file systemControl.hpp.

References systemControl::outFilePrecision_.

Member Data Documentation

runName_

const word runName_

protected

Definition at line 48 of file systemControl.hpp.

Referenced by systemControl::runName().

topLevelFolder_

const fileSystem topLevelFolder_

protected

Definition at line 51 of file systemControl.hpp.

settings_

repository settings_

protected

Definition at line 56 of file systemControl.hpp.

Referenced by systemControl::settings().

caseSetup_

repository caseSetup_

protected

Definition at line 59 of file systemControl.hpp.

Referenced by systemControl::caseSetup().

settingsDict_

dictionary& settingsDict_

protected

Definition at line 62 of file systemControl.hpp.

Referenced by systemControl::settingsDict().

libs_

dynamicLinkLibs libs_

protected

Definition at line 65 of file systemControl.hpp.

outFilePrecision_

size_t outFilePrecision_ = 6

protected

Definition at line 68 of file systemControl.hpp.

Referenced by systemControl::outFilePrecision().

Time_

Time Time_

protected

Definition at line 71 of file systemControl.hpp.

Referenced by systemControl::geometry(), systemControl::setSaveTimeFolder(), and systemControl::time().

externalTimeControl_

bool externalTimeControl_ = false

protected

Definition at line 75 of file systemControl.hpp.

g_

realx3 g_

protected

Definition at line 78 of file systemControl.hpp.

Referenced by systemControl::g().

domain_

box domain_

protected

Definition at line 81 of file systemControl.hpp.

Referenced by systemControl::domain().

timers_

Timers timers_

protected

Definition at line 84 of file systemControl.hpp.

Referenced by systemControl::timers().

timersReport_

Logical timersReport_

protected

Definition at line 86 of file systemControl.hpp.

Referenced by systemControl::timersReport().

writeToFileTimer_

Timer writeToFileTimer_

protected

Definition at line 88 of file systemControl.hpp.

---

The documentation for this class was generated from the following files:

• src/phasicFlow/repository/systemControl/systemControl.hpp
• src/phasicFlow/repository/systemControl/systemControl.cpp
